New Technologies

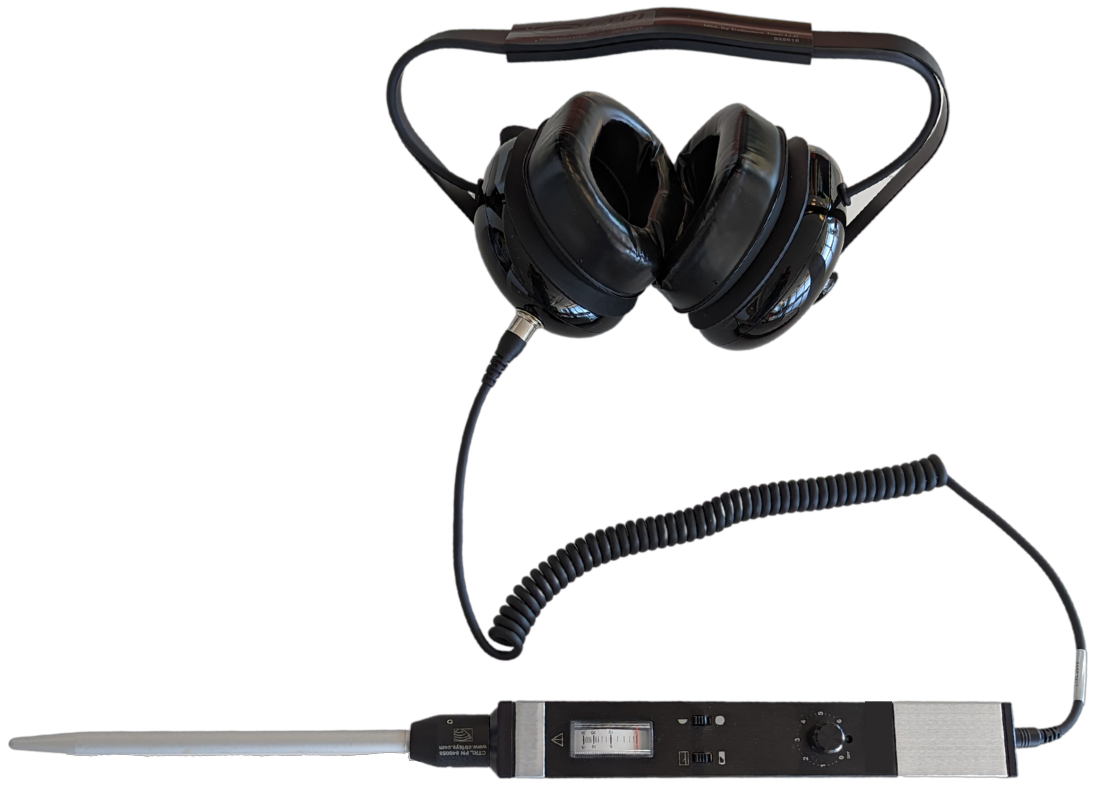

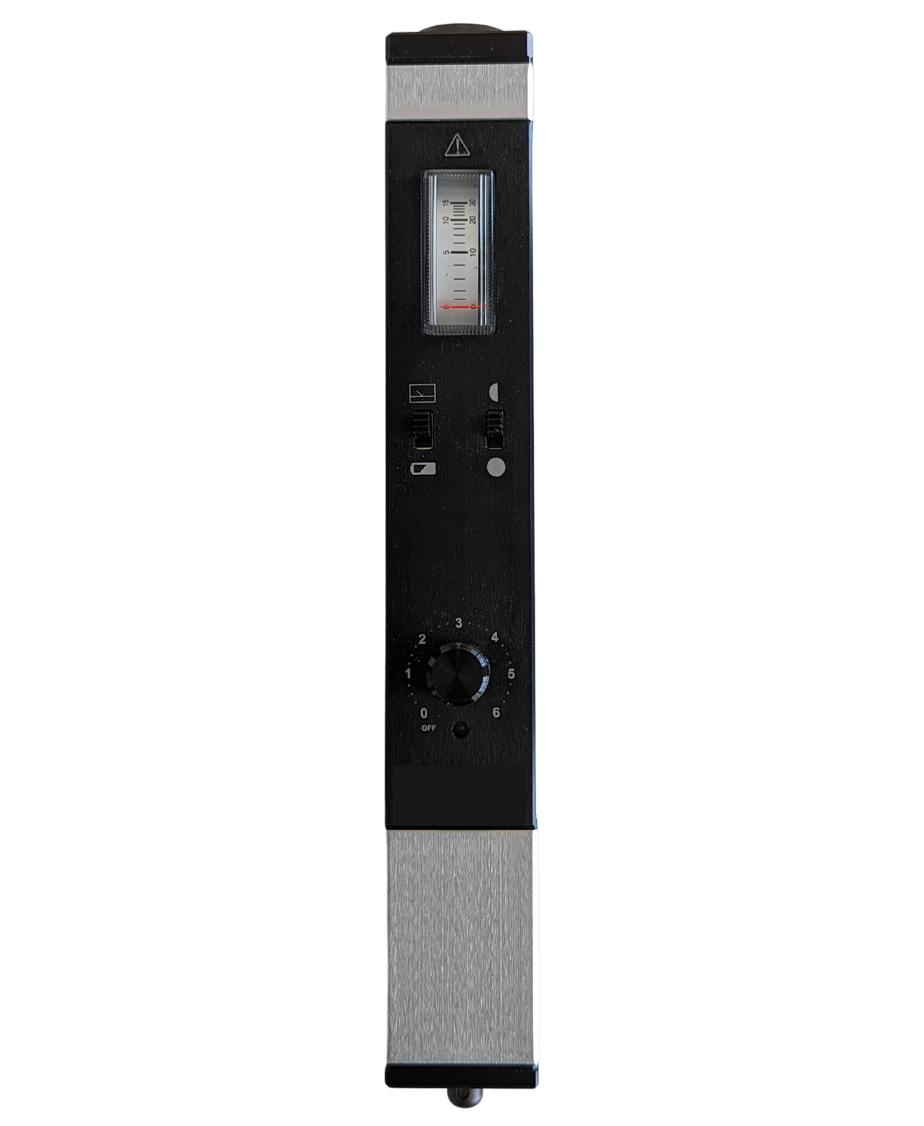

- Easy to use, “point and shoot”.
- Uses a piezoelectric sensing element (like accelerometers).
- Detects airborne and structure-borne ultrasound.
- Leak detection is not specific to a kind of gas.
- Costs a fraction of competitive systems.
- Trusted in the world’s most demanding applications, including the International Space Station.

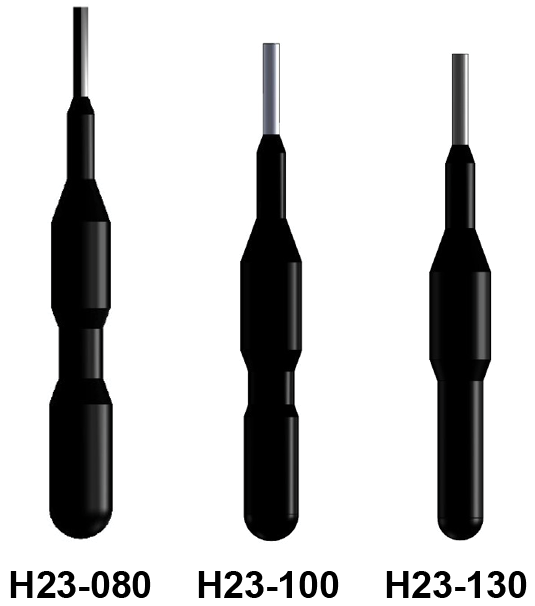

H23 series hydrophones are small, versatile, self-amplified, and shielded for a variety of underwater acoustic measurements.
Key features and benefits
- Wide, flat frequency response for underwater sound measurements over the frequency range 5 Hz to 150 kHz.
- Underwater operation to 680 meters, 2230 feet, 1000 PSI.
- Ultra low noise internal amplifier eliminates triboelectric cable noise, connector contamination, and an expensive inline amplifier.
Lab and ocean applications for the H23 series hydrophones include calibration, military surveillance, underwater biological studies, ship noise studies, pump cavitation and machinery studies, and monitoring of underwater ordnance.
Key features and benefits

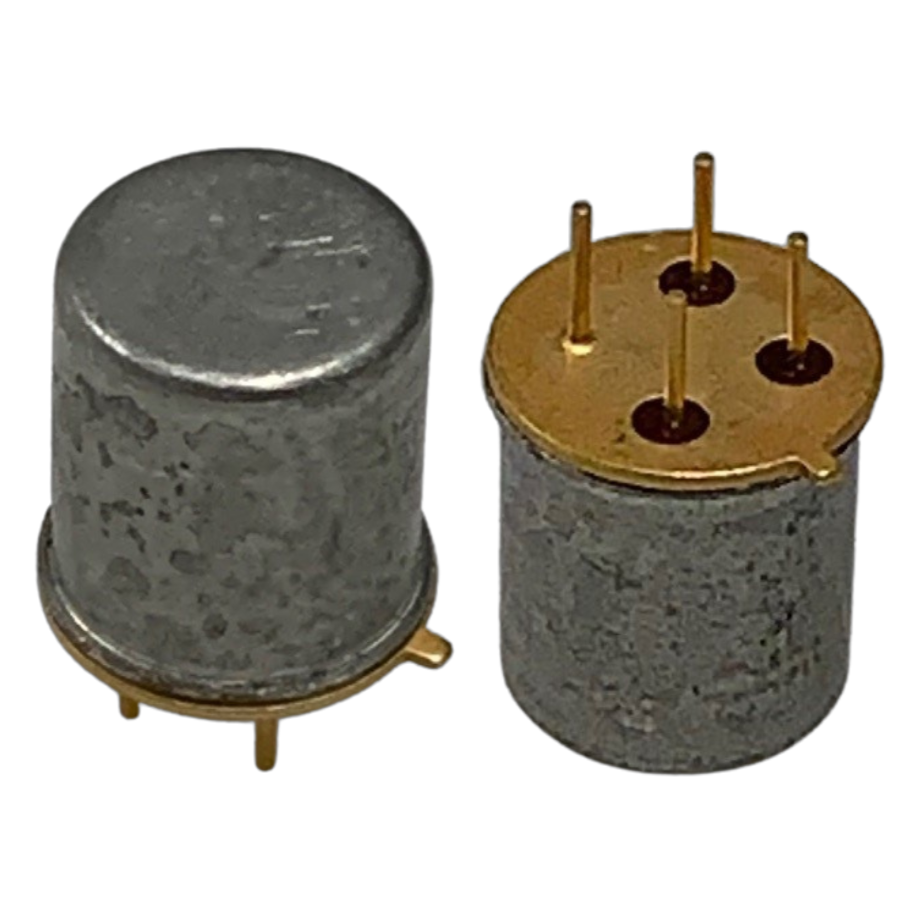

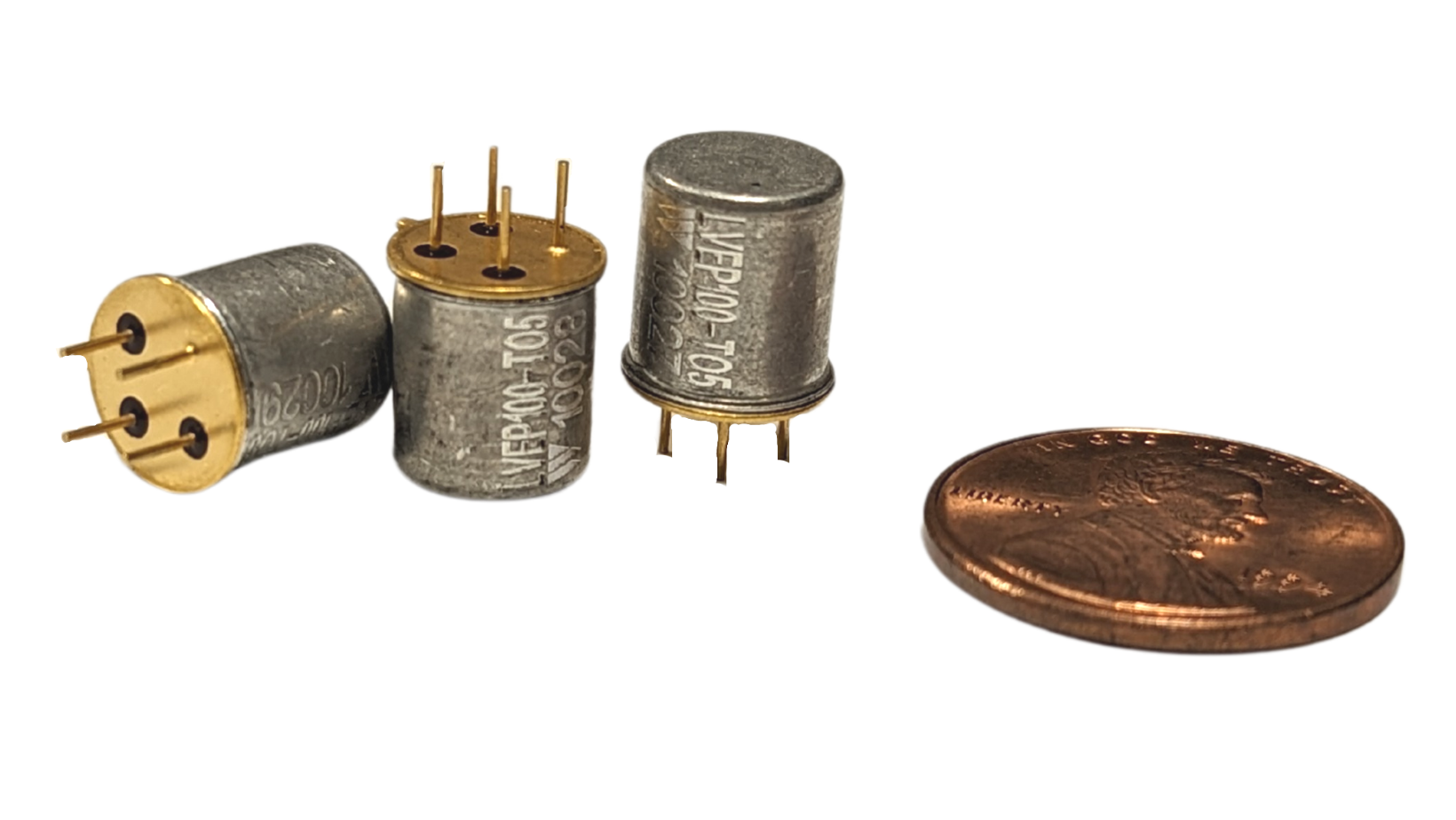

The LVEP050-TO5 embedded accelerometer is ultra-low power and designed for easy integration into a wireless sensor – with the longevity and performance characteristics of an industrial accelerometer.
- Ultra-low power consumption to take more measurements using less battery.
- TO-5 standard packaging to seamlessly integrate into the final design.
- High performance sensing element to match the measurement capabilities required for effective machinery health monitoring.
Applications for the LVEP050-TO5 include wireless vibration sensors, battery powered vibration sensors, accelerometers powered by energy harvesting, and integration into industrial equipment for self-diagnostics and IIOT machinery health monitoring.
Key features and benefits

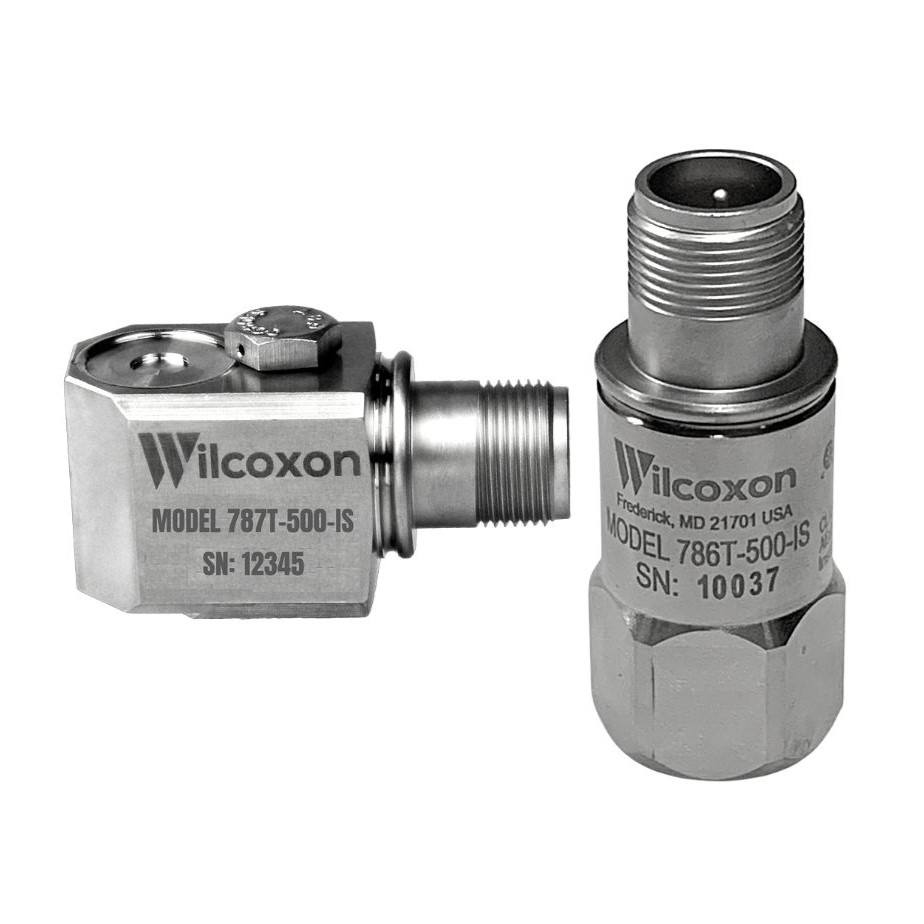

- Dual-output accelerometer and temperature sensors measure both vibration and temperature, providing more data from one sensor to simplify condition monitoring in applications such as bearing and gear monitoring, where it is useful to know the temperature at the mounting location.
- Certified versions meet Intrinsically Safe (Zone 0 / Zone 1) and Class I Division 2 (Zone 2) requirements for use in hazardous area locations common in cement production, mining, steel manufacturing, oil and gas, and other industries.
- Excellent broadband frequency response, including high-sensitivity, 500 mV/g models with clear signals at low vibration levels, down to 0.2 Hz, for slow speed monitoring applications, like gearboxes, fans, and conveyors.

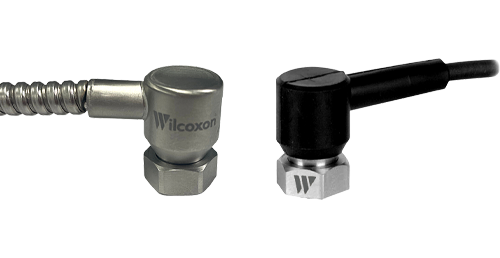

SM Series of Integral Cable Sensors
Key features and benefits
- More affordable than other side-exit, integral-cable sensors – without loss of reliability and performance.
- Compact size with low profile to fit in tight and hard-to-reach spaces with low clearance requirements.
- Pivots on integral mounting base for 360° cable orientation with reduced cable strain.
- Mountable in various orientations and locations, allows users to tighten sensor in final measurement position
Integral cable for submerged or aggressive environments.

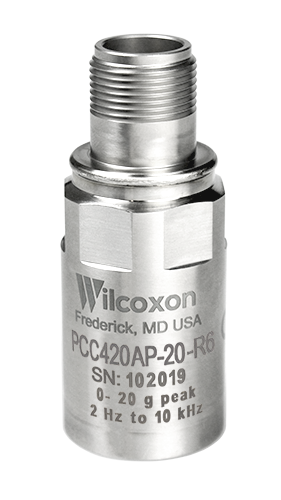

IEPE Accelerometers
Key features and benefits

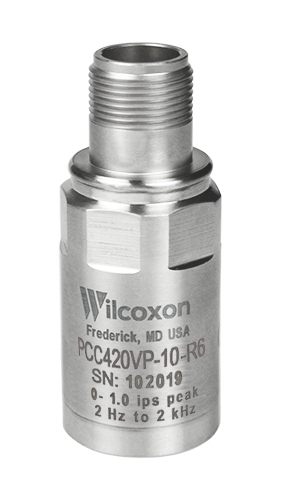

- 4-20mA output (acceleration or velocity).
- Easily incorporated into existing CBM programs.
- Continuous trend data simplifies monitoring of machine vibration.
- More compact housing than legacy PC420 models.
- Available with a 2-pin MIL or 4-pin M12 connector.

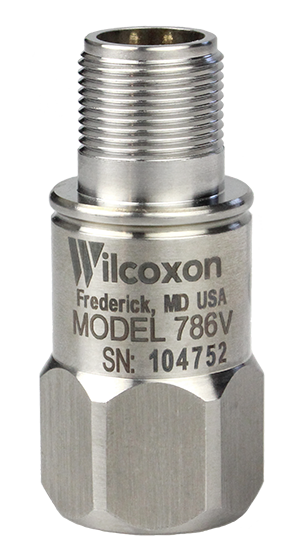

786V Velocity Sensor
With a wide frequency response range (1-12,000 Hz at +/- 3dB), the 786V can capture signs of the most common developing faults – imbalance, misalignment, looseness – on rotating machines. A 100 mV/in/sec sensitivity and +/-5% sensitivity tolerance make for excellent measurement accuracy, and the sensor’s rugged design ensures long-term reliability in industrial installations.
Key features and benefits
- Velocity vibration measurements can be easily compared against ISO standards.
- Ideal for monitoring common mid-frequency faults – imbalance, misalignment, looseness.
- Eliminates noise influences from external integrators.
- More compact size than legacy sensors.
- Lower cost without loss of reliability or performance.

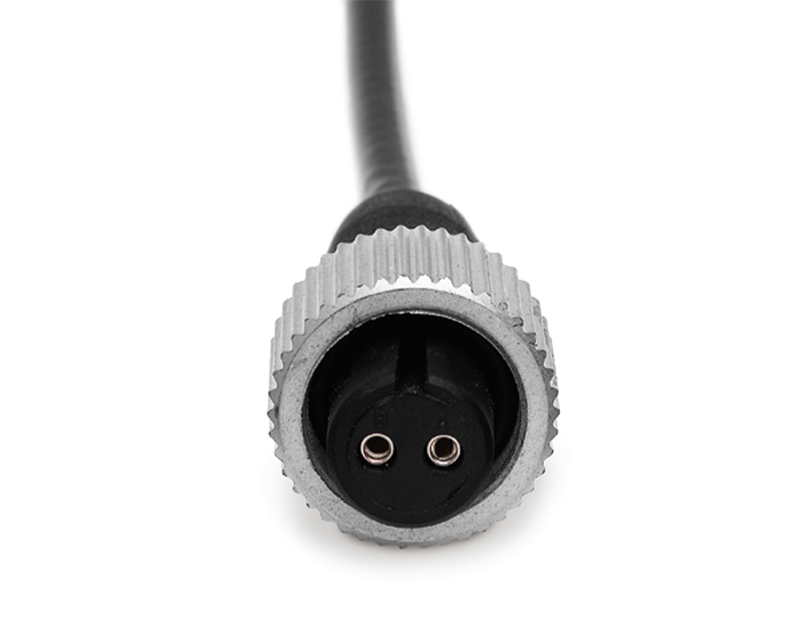

R6W/R6WR Molded Connector Cable Assemblies
Key features and benefits
- IP67 rated.
- 2-socket MIL-C-5015 style.
- Compatible with a variety of cables.
- Straight and right angle configuration.
- Contamination-resistant connections reduce damage to cabling.

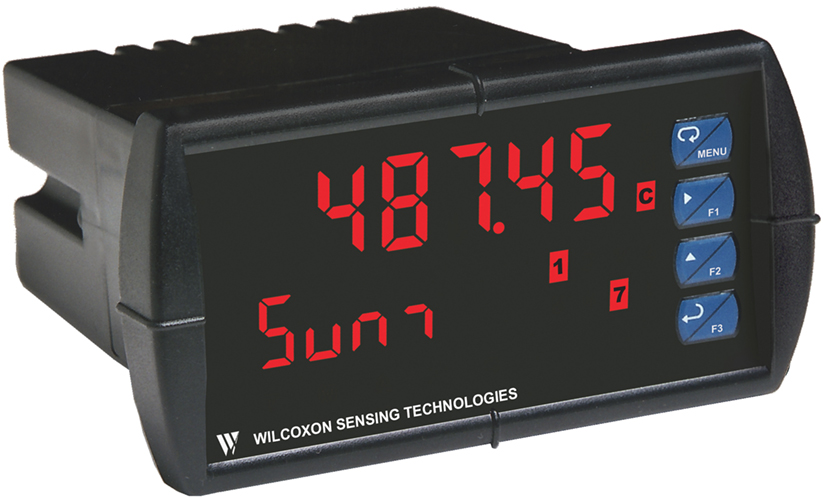

PCD200 Series Dual-input Process Display Panel Meters
Process control solutions
The PCD200 series are dual-input, field-programmable digital panel meters that accept two common process monitoring inputs, including 4-20mA and voltage signals, and provide a localized display of sensor data. The customizable process display and advanced math functions make it easy to get specific, actionable data in real time.
The PCD200 series are 1/8 DIN digital panel meters that accept two inputs of either a process current (4-20 mA) or process voltage (0-5V, 1-5V, ±10V). It displays these signals on a dual line, 6-digit process display that is available with an optional Sunbright® sunlight readable LEDs. The meter can be customized such that these two inputs are displayed in a variety of ways, including both at the same time with tags or the result of math functions performed on one or both of the inputs. The PCD200 process display panel meter features CE marking, a NEMA 4X front, and AC or DC power options. They can be equipped with up to four internal relays, a 4-20 mA analog output, and Modbus® serial communications. PCD200 panelmeters can be programmed via the front panel pushbuttons or the included PC-based software.
- Dual input process meter with math functions.
- Accepts 0-20mA, 4-20mA, 0-5 V, 1-5 V, and ±10 V inputs.
- NEMA 4X, IP65 front panel.
- SunBright display models available for clear visibility in outdoor applications.
- Input power options include 85-265 VAC or 12-24 VDC.
- 2 or 4 relays.
- Isolated 4-20mA output options.
- Includes PC-based programming and monitoring software.

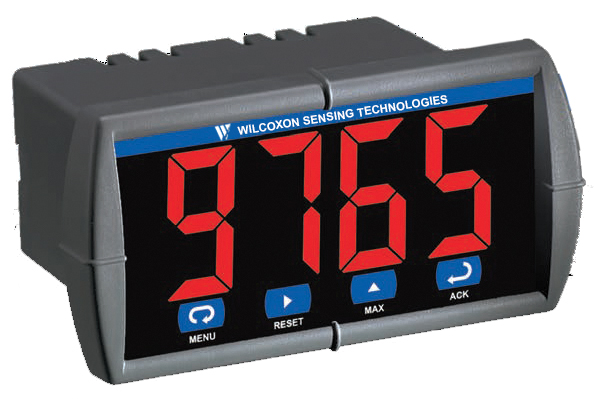

PCD100 Series Process Display Panel Meters
Process control solutions
The PCD100 series are versatile, field-programmable digital panel meters that accept common process inputs, including 4-20mA vibration, and provide a localized display of sensor data.
Key features and benefits
- Accepts current (0-20 mA, 4-20 mA), voltage (0-5V, 1-5V, ± 10V), thermocouple, and RTD field-selectable inputs.
- 2 relays, isolated 4-20 mA output options.
- Compatible with PCC420 series sensors and iT transmitters.
- Four external contacts for configuration in the field.
- 4-digit display.
- Two alarm points with front panel red LEDs to indicate alarm conditions – useful for applications requiring visual-only indication.

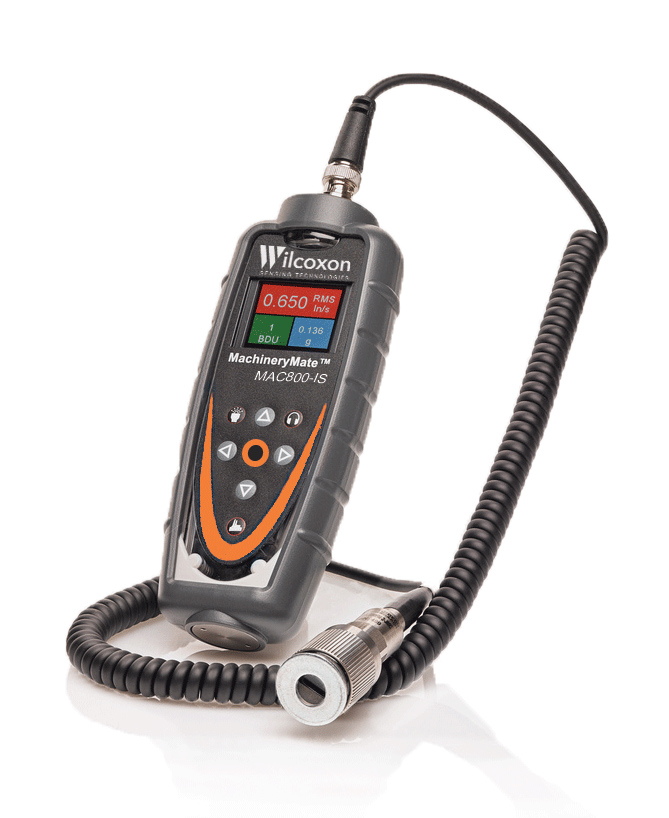

MAC800-IS Intrinsically Safe Handheld Vibration Meter
- Class I Div 1/Zone 1 certified – intrinsically safe.
- Allows data collection in more areas.
- Records, analyzes and displays vibration values color-coded to ISO 10816-3 standards for simpler analysis in the field.
- Built-in filter bands for clearer identification of machine problems.
- Kit includes 786A-IS intrinsically safe accelerometer, magnetic mount, cable assembly, and DataMate software for improved monitoring capabilities.

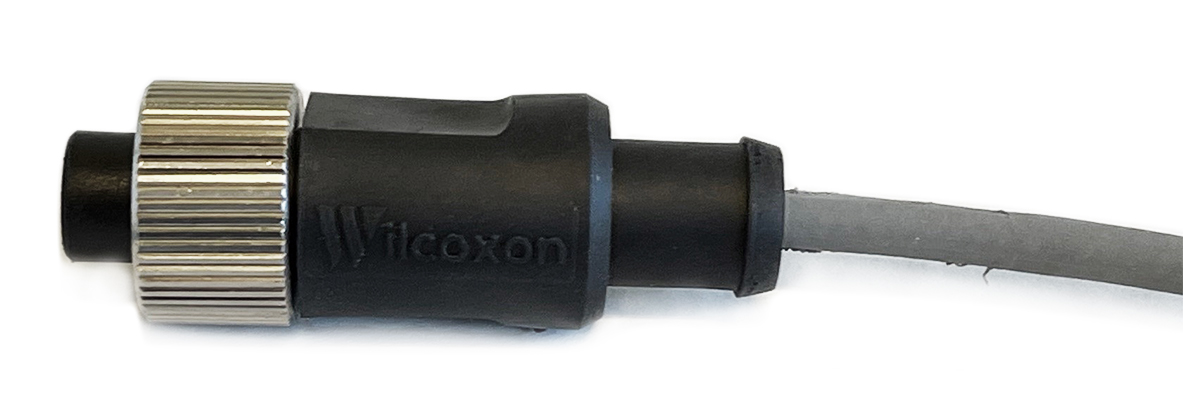

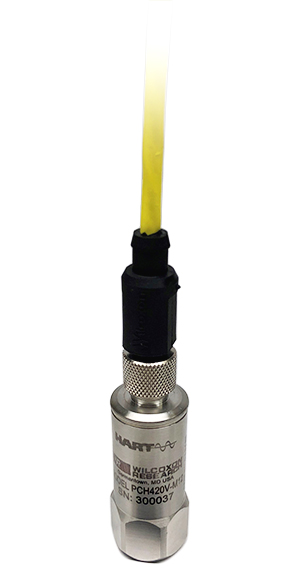

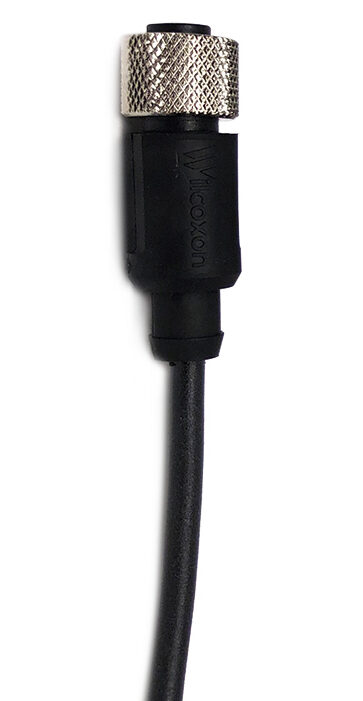

RM12W 5-Socket Molded Connectors
Key features and benefits
- IP67 rating: dust-tight and submersible to 1 m.
- 5-socket M12 connector.
- Compatible with 4-pin M12 sensors and 2- or 4-conductor cables.
- Molded Santoprene strain relief provides durability and strong chemical resistance.
- Rated for 105°C operation.
- Slim design for compact areas.

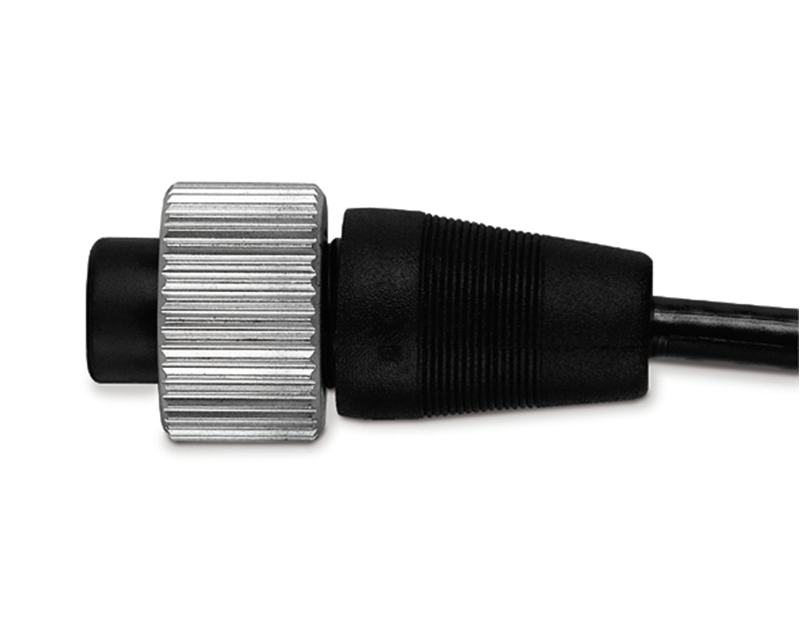

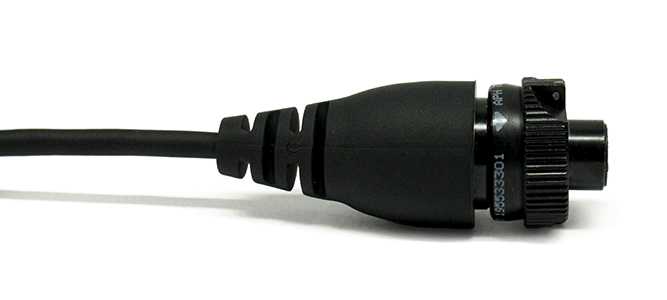

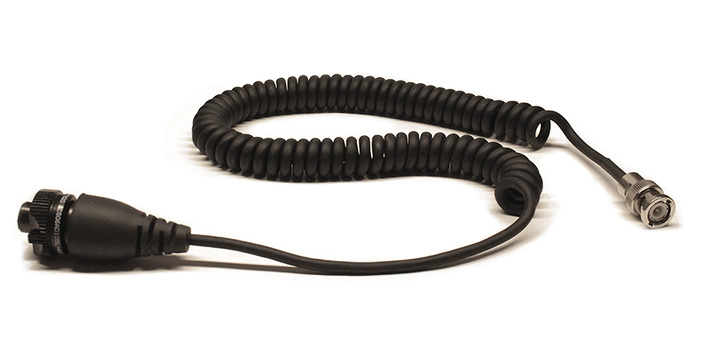

R6WP Molded Connectors
Key features and benefits
- High flexibility, superior strain relief.
- 2-socket MIL-C-5015 style connector.
- Compatible with straight and coiled cables for versatility on walkaround routes.
- IP65 rating.
- Standard assemblies with BNC termination connector available in 6, 10 or 16 ft. lengths for use with portable data collectors.
